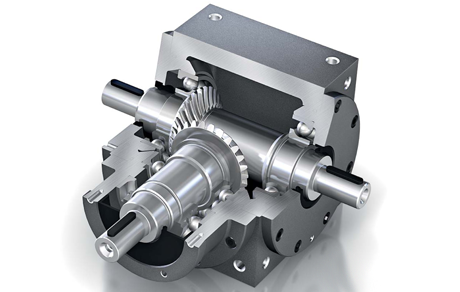

PowerGear HS cutaway exposing bevel gears

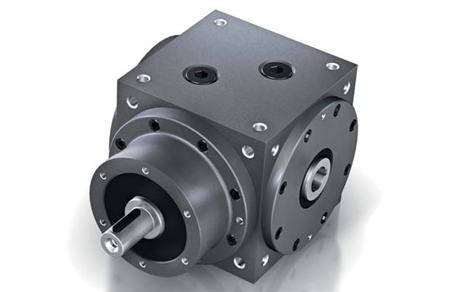

PowerGear HS H series with hollow shafts

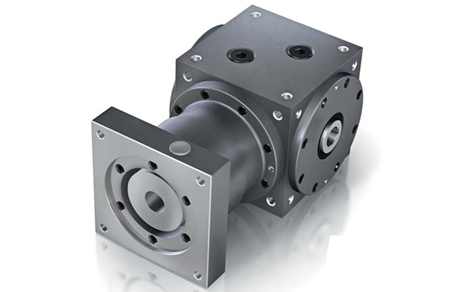

PowerGear HS KH series with hollow shafts and input flange

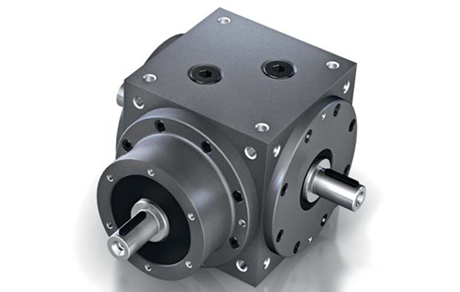

PowerGear HS L series with solid shafts

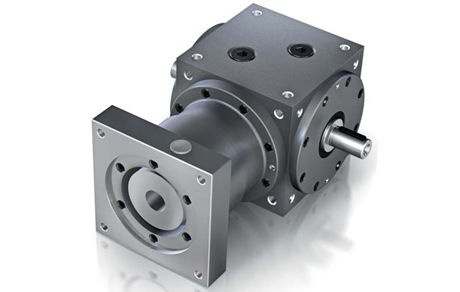

PowerGear HS KL series with solid shafts and input flange
The PowerGear HS Bevel Gearbox is designed for applications where high speed and a high thermal performance is required.
- Input speeds up to 8500 RPM
- Higher permissible thermal performance limit
- High efficiency ratings up to 98%
- Direct motor mount or via flanges
- Low backlash and high accurate transmission
- Friction-locked fit between shaft and bevel gear
- Suitable as pre-stage for coaxial gearboxes
Available options
- Hollow shaft output
- Solid shaft output
- Extended output hollow shaft for optional shrink disc
- Multiple cooling options
- Oil circulation system
- Cooling packs for heat dissipation with optional fan for additional cooling
- Mouting feet
- Available in stainless steel
- Customized designs
Not finding what you're looking for? All of our gears and gearboxes can be customized to your precise specifications. Contact us today and let us know what you need. We make our gears work for you.
Applications
Markets Served: machine building industry, glass handling, and many more!
Gearbox Sizes and Specifications
Performance Data- Additional performance and technical data. Data includes radial force, axial force, noise levels, approximate weights, and much more.CAD files- Downloadable 2D and 3D CAD files. Multiple formats available.
| Ratio | Nominal Torque (Nm) | Nominal Input Speed (RPM) | Max Input Speed (RPM) | Backlash* (arcmin) | Efficiency** |
|---|---|---|---|---|---|
|
* At the output, reduced backlash available ** At full load |
|||||
| 1:1 | 45 | 3000 | 8500 | ≤ 15 | > 98% |
| 1.5:1 | 45 | 3500 | 8500 | ≤ 15 | > 98% |
| 2:1 | 42 | 3500 | 8500 | ≤ 15 | > 98% |
| Ratio | Nominal Torque (Nm) | Nominal Input Speed (RPM) | Max Input Speed (RPM) | Backlash* (arcmin) | Efficiency** |
|---|---|---|---|---|---|
|
* At the output, reduced backlash available ** At full load |
|||||
| 1:1 | 78 | 2800 | 7000 | ≤ 14 | > 98% |
| 1.5:1 | 78 | 3200 | 7000 | ≤ 14 | > 98% |
| 2:1 | 68 | 3200 | 7000 | ≤ 14 | > 98% |
| Ratio | Nominal Torque (Nm) | Nominal Input Speed (RPM) | Max Input Speed (RPM) | Backlash* (arcmin) | Efficiency** |
|---|---|---|---|---|---|
|
* At the output, reduced backlash available ** At full load |
|||||
| 1:1 | 150 | 2500 | 5500 | ≤ 13 | > 98% |
| 1.5:1 | 150 | 3000 | 5500 | ≤ 13 | > 98% |
| 2:1 | 150 | 3000 | 5500 | ≤ 13 | > 98% |
| Ratio | Nominal Torque (Nm) | Nominal Input Speed (RPM) | Max Input Speed (RPM) | Backlash* (arcmin) | Efficiency** |
|---|---|---|---|---|---|
|
* At the output, reduced backlash available ** At full load |
|||||
| 1:1 | 360 | 2000 | 4000 | ≤ 12 | > 98% |
| 1.5:1 | 360 | 2600 | 4000 | ≤ 12 | > 98% |
| 2:1 | 330 | 2600 | 4000 | ≤ 12 | > 98% |
